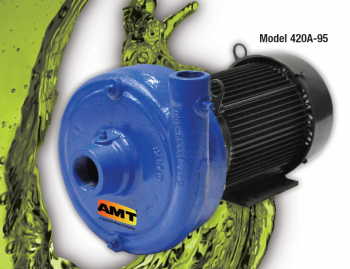

The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pullfrom- rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. Additional Features
• Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping
• Multiple 1/2" NPT Drain Ports
• Self-cleaning Impeller
• Front Drain Plugs
• 303 Stainless Steel Motor Shaft
• 3-Phase models can also operate on 50 Hz (This will change full load amps and service factor, RPM and priming capabilities).
• NOTE: Electric supply for ALL motors must be within ?10% of nameplate voltage rating (e.g. 230V ?10%= 207 to 253).
• Hazardous Duty/Xplosion Proof motors available from stock ranging from 1 to 10 HP; Contact for info and lead time!
• 1750 RPM TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors
• 3-Phase models can also operate on 50 Hz (This will change full load amps and service factor, RPM and priming capabilities).
• NOTE: Electric supply for ALL motors must be within ?10% of nameplate voltage rating (e.g. 230V ?10%= 207 to 253).
1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.Be the first to leave a comment for this product.
