Self-Priming up to 20 Feet with Built-In Viton® Check Valve
Engine Options: Honda, Briggs & Stratton or Hatz Diesel
Heavy Duty Steel Roll Frame Included
Maximum Solids Handling up to 1" Diameter
Maximum Head up to 105 Ft.
Maximum Flow up to 185 GPM
Optional Wheel Kit Available

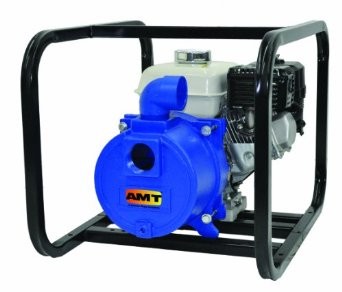

AMT Cast Iron Engine Driven Trash pumps are designed for applications which require high flow efficiency, solids handling capability and abrasion resistance. This series of pumps are also good for chemical spraying, handling and processing. These pumps are constructed of heavy duty CNC machined cast iron components featuring removable/replaceable cast iron volute and impeller. Simple four bolt clean out design permits easy removal of trash and debris without disconnecting hoses. Pumps are available with gasoline overhead valve or diesel engines from various engine manufacturers.
Standard Features:
• (2) NPT Pipe Nipples & 2" Street Elbow Included
• Viton®/Silicon Carbide Mechanical Seal
• Viton® O-ring and Casing Seal
• Self-primes to 20 Feet with Built-in Viton® Check Valve
• Stainless Steel Shaft Sleeve
• Steel Suction Strainer Included
• Cast Iron Replaceable Volute/Wearplate and Impeller
• Maximum Temperature 180° F
• Maximum Working Pressure 75 PSI
• Heavy Duty Steel Roll Frame Included
• B & S Vanguard and Honda Engines are Overhead Valve (OHV) Designs with Low Oil Alert Maximum Solids Handling Capacity: 1? Diameter
Manufacturer Disclaimer: "*Hp Class: Indicates classification for marketing purposes and does not indicate actual engine horsepower. Contact engine manufacturer for actual HP specifications." 1Many AMT products are usually available to be shipped within 24 hours, however some may require a 7-10 day factory lead time - contact us for more information on product availability 2Image may not reflect actual product - Double check the AMT catalog for accurate product information.
